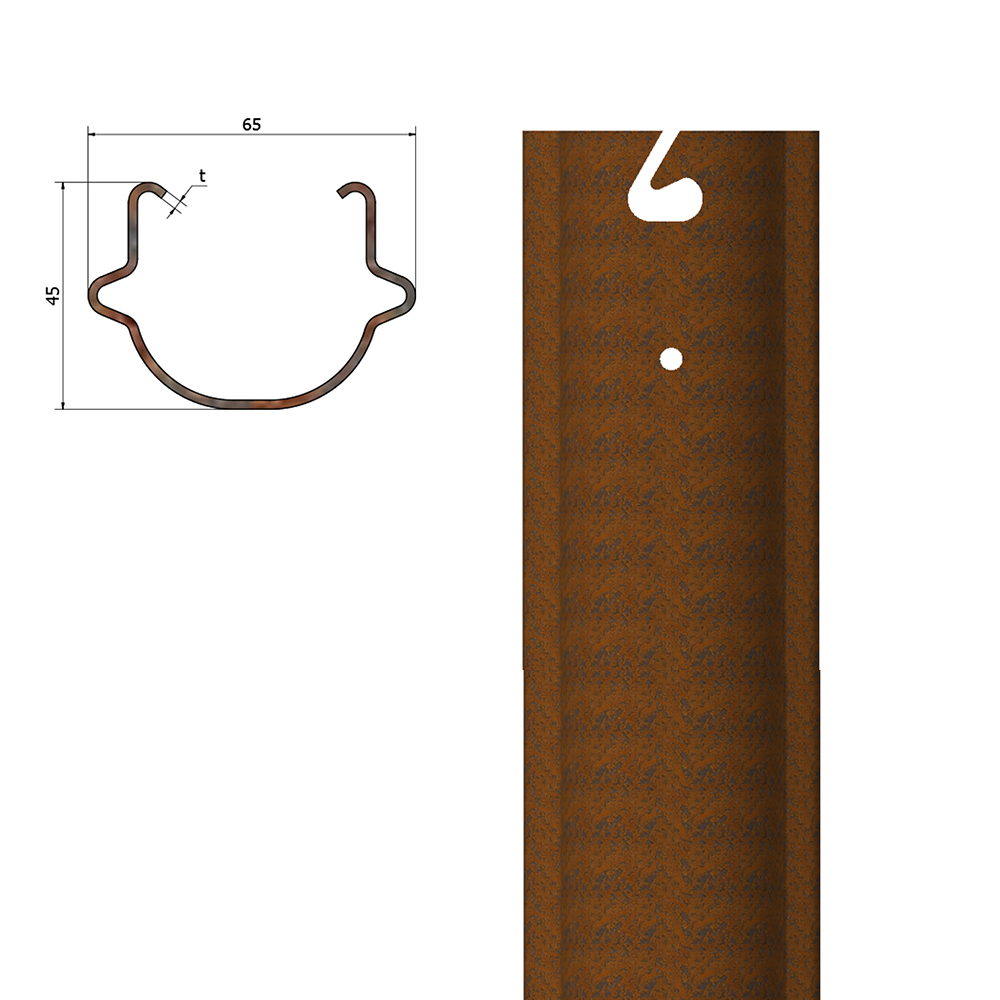

J-slot – positioned at the top of the post
J-shaped top slot for inserting the main load-bearing wire. Includes a central hole below the slot for tying the wire directly to the post, ensuring a unified and stable structure.
https://www.vineyardtrellis.com/wp-content/uploads/2024/12/vineyard-post-Cortina-model.pdf
Cortina
Galvanised vineyard post “Cortina”
The ideal solution for pendant and simple curtain vineyard systems
The “BIG CS” galvanised trellis post has been specially designed to meet the structural needs of simple and pendant curtain vineyard systems. This post provides reliable, stable support for vine rows, enhancing wire alignment and distribution across the trellis.
Based on the classic BIG 65 x 45 mm vineyard post, the “CORTINA” version features a top opening that allows the main support wire to be placed at the centre of the post – a crucial feature for optimising wire layout and tensioning.
In addition, a hole below the slot enables the wire to be securely tied to the post, forming a single, stable structural unit that reinforces the entire vineyard support system.
Variants
Technical data
Slot system
Dimension
Materials
Thickness
Length
Slot system
Dimension
Materials
Thickness
Length
65 x 45 mm
Hot-dip galvanised steel (after processing)
Also available in corten steel S300J2W*
* Certified according to EN 10204
Hot-dip galvanised steel: 1.95 mm – 1.80 mm
Corten steel: 1.80 mm
2.00 mm available on request (minimum order: 5,000 posts)
2500 mm
2600 mm
2700 mm
2750 mm
2800 mm
3000 mm
3200 mm
3500 mm
4000 mm
Other lengths available on request
Key advantages
The BIG Cortina Simple post is available in various heights, thicknesses, and materials, providing a customisable solution for any trellising system based on climatic conditions and specific agronomic needs.Its robust structure is engineered to withstand harsh weather conditions and mechanical stress, ensuring long-term strength and durability in the field.
Upgrade your pendant curtain vineyard system with an innovative, durable, and easy-to-install solution. This post ensures structural stability and efficient vine management, supporting healthy growth and increasing overall vineyard productivity.
Get in touch to discover how Sika can support your vineyard with high-quality posts and tailored solutions
Planning a new vineyard or upgrading your current system with modern solutions?
Our corten and galvanised steel vineyard posts deliver maximum strength and long-term durability—built to perform in every environment.
