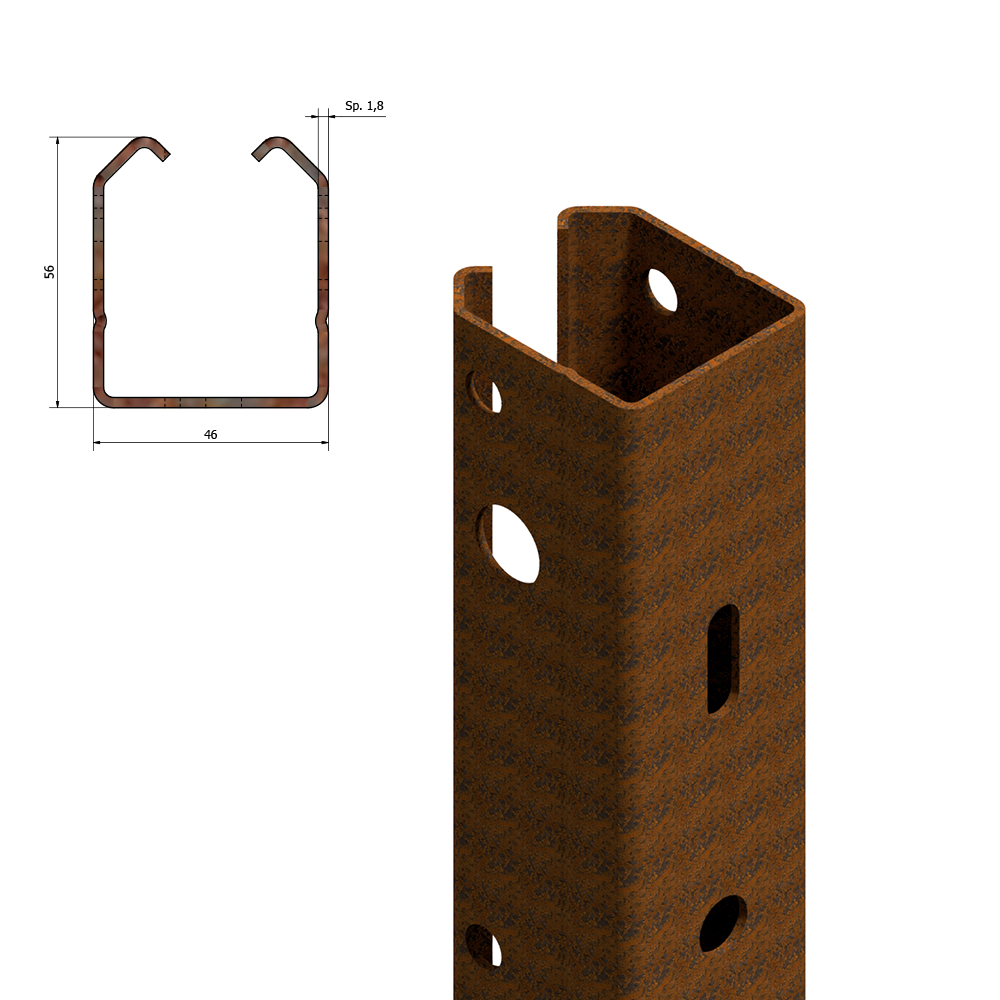

56 x 46 mm
https://www.vineyardtrellis.com/wp-content/uploads/2024/12/vineyard-trellis-Mini-Strong.pdf
Mini
Galvanized end post for vineyard trellis “Mini Strong”
“Mini Strong” is the compact yet robust galvanized end post for your vineyard.
The “Mini Strong” galvanized steel end post is the ideal compact and efficient alternative to traditional concrete posts, especially suited for vineyards that require a less invasive trellis solution. Available in both hot-dip galvanized and pre-galvanized steel, this end post is specifically designed to pair with the “Small” line post, ensuring excellent corrosion resistance and long-term durability.
Slotted holes and punchings: Equipped with precision-placed slots and holes for inserting trellis wire tensioners, “Mini Strong” allows for accurate and effortless wire tensioning.
Anchor plate holes: The lower section of the post features four holes for fitting an anchor plate, enhancing stability and overall system security.
The “Mini Strong” galvanized end post is a smart choice for vineyard managers looking for a reliable, long-lasting structural support that combines mechanical strength, discreet aesthetics, and cost efficiency.
Variants
Technical data
Dimension
Materials
Thickness
Length
Dimension
Materials
Thickness
Length
Hot-dip galvanised steel after profiling and pre-galvanised steel from coil *
Also available in: Corten S300J2W *
* Certified according to EN 10204
2.00 mm hot-dip galvanised steel and 1.80 mm re-galvanised steel from coil
Also available in: Corten 1.80 mm
1800 mm
2000 mm
2500 mm
2600 mm
Other lengths available on request
Key advantages
High corrosion resistance
The zinc coating, whether hot-dip or pre-galvanized, forms a protective layer that resists environmental elements, ensuring durability and reducing the need for maintenance
Cost-effective
The pre-galvanized version offers a more affordable solution, making the post accessible without compromising on quality or functionality
Optimized dimensions
The compact design of the “Mini” post makes it ideal for vineyards requiring discreet and functional support solutions
Certified quality
SIKA is the only company in the sector certified to both ISO 9001 (Quality Management) and ISO 14001 (Environmental Management)
Get in touch to discover how Sika can support your vineyard with high-quality posts and tailored solutions
Planning a new vineyard or upgrading your current system with modern solutions?
Our corten and galvanised steel vineyard posts deliver maximum strength and long-term durability—built to perform in every environment.
