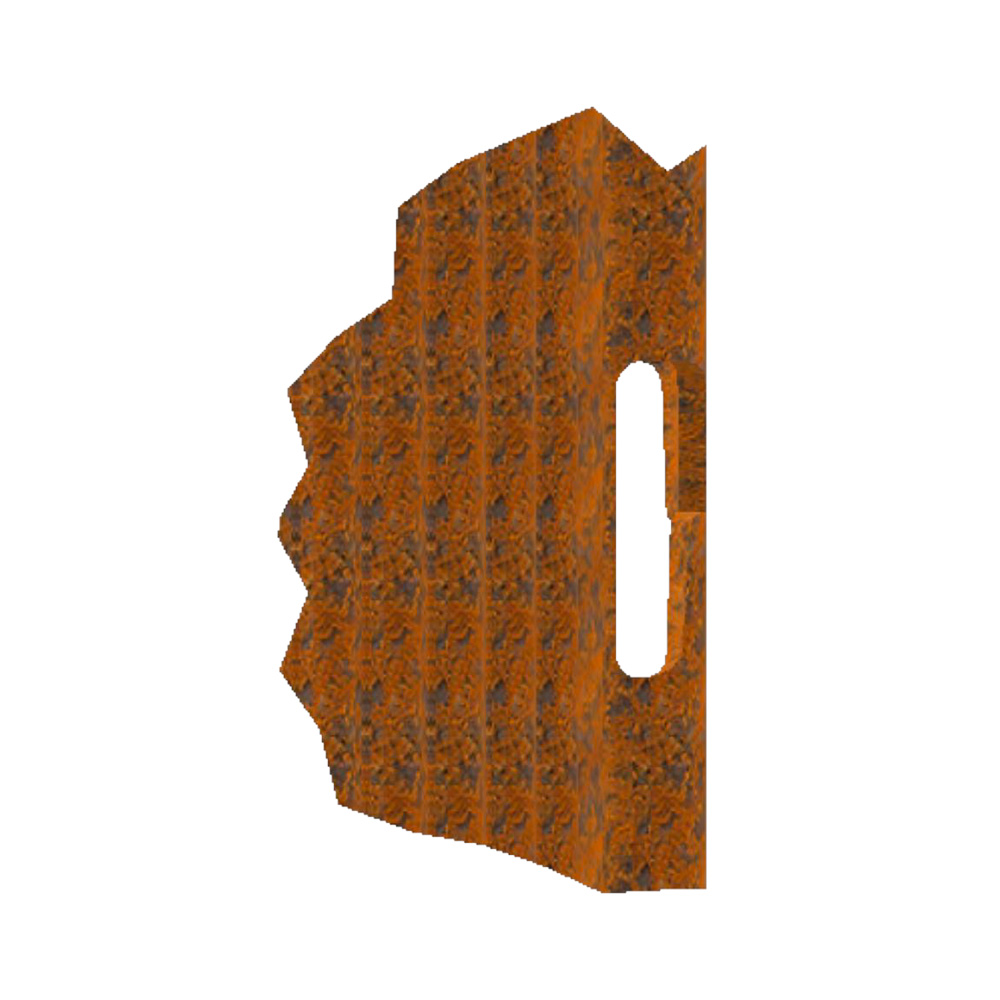

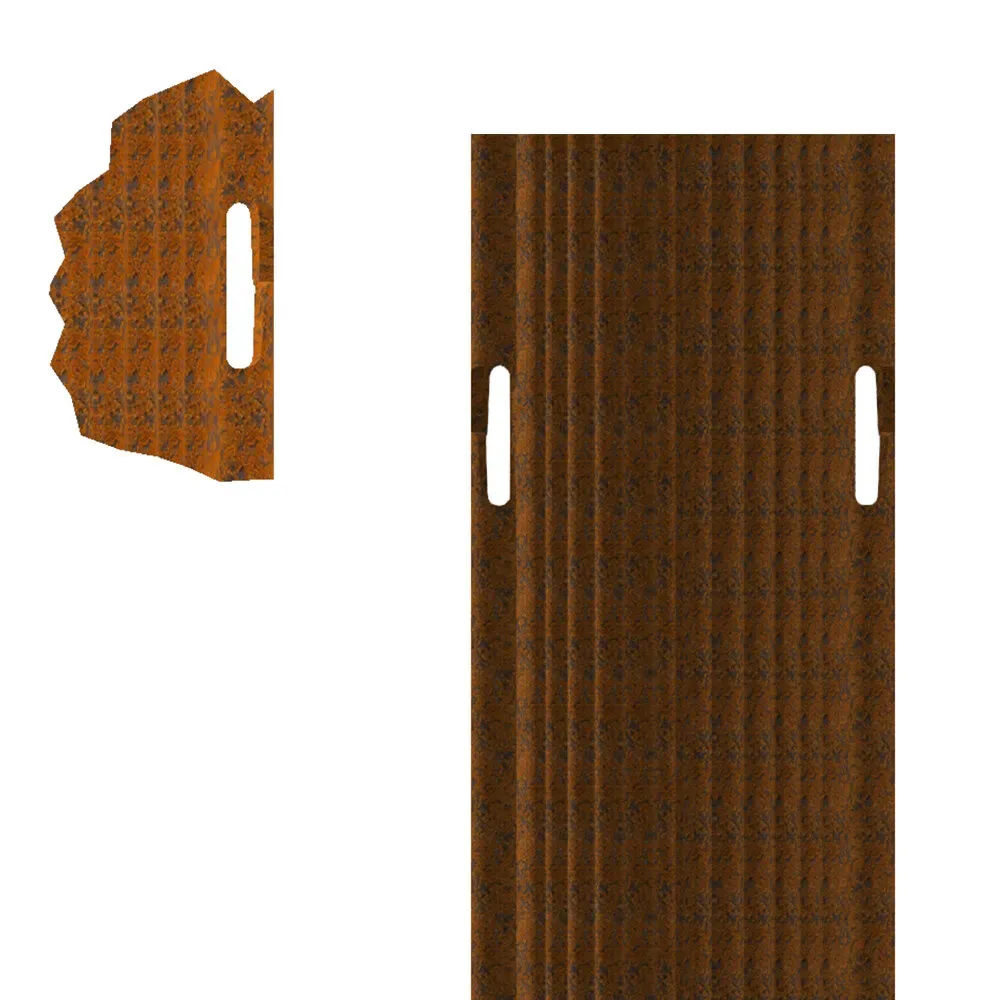

“N” Slot
Stops fixed wires from slipping out; also useful on sloping ground (up-and-down terrain).
https://www.vineyardtrellis.com/wp-content/uploads/2024/12/vineyard-big-corten.pdf
NEW
Corten tubular vineyard line post “Orbit”
Corten tubular vineyard post by Sika Orbit
The corten tubular vineyard post “Orbit” is the Sika Orbit technical solution for everyday work in the vineyard. Unlike traditional C-profiles, this tubular vineyard post has a closed 61 × 50 mm section, high-frequency welded by material fusion. As a result, it delivers superior torsional strength and +55% greater stability.
The post is made from weathering steel (Corten S355J2W, EN 10204 certified). Over time, this corten steel vineyard post develops a natural protective patina. For this reason, it needs no maintenance and blends visually into the vineyard.

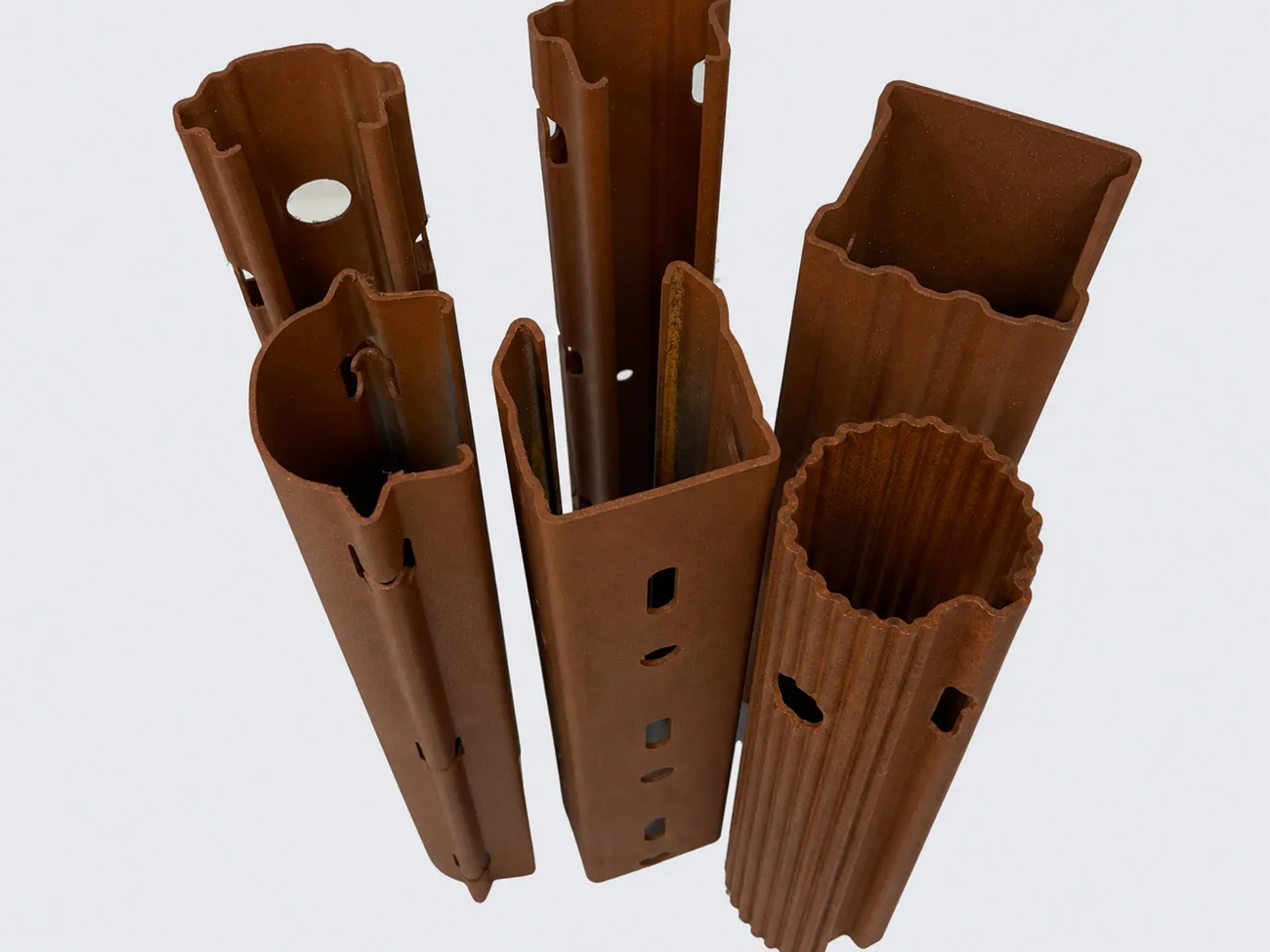

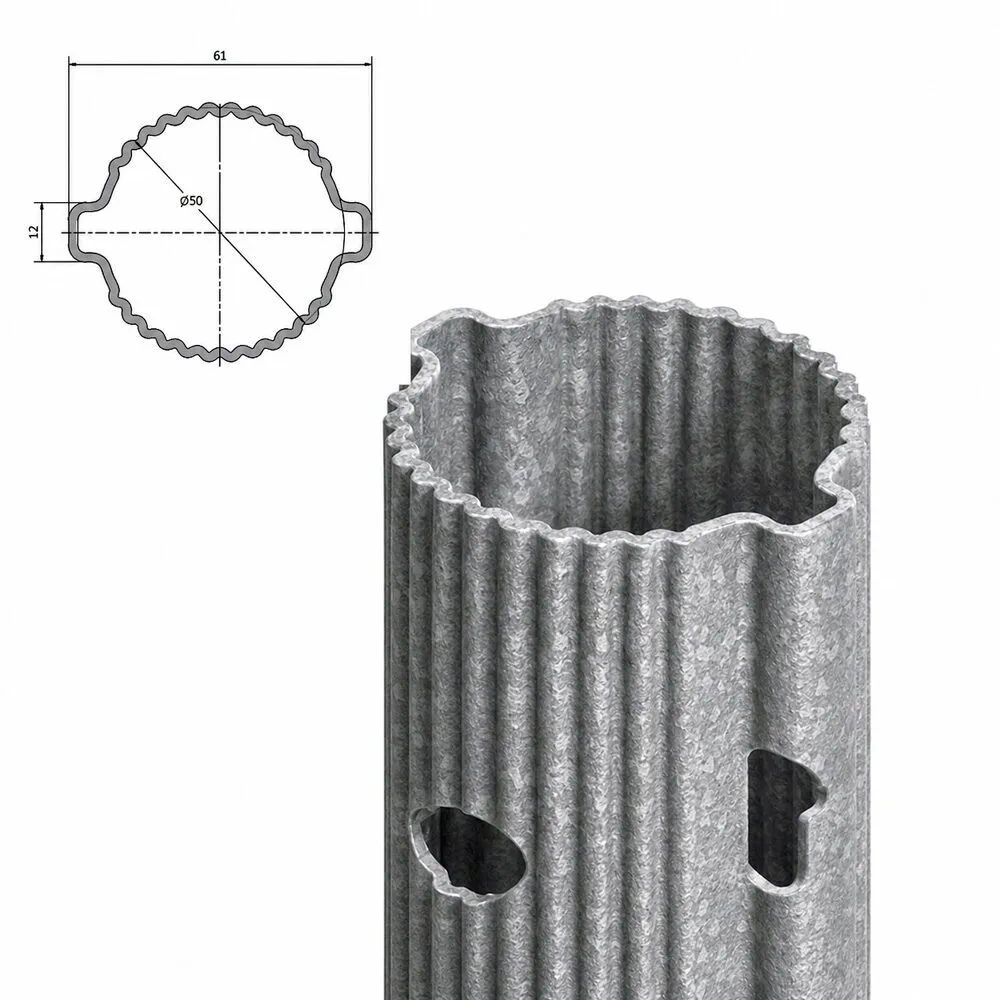

With no sharp edges and uniform perimeter ribbing, the Sika Orbit vineyard post is safe to handle and quick to install. Moreover, the H+N+H slots are roll-formed directly, so the post is ready to use with no further processing. Discover the full range of corten steel posts, or choose the Orbit in hot-dip galvanised steel.
Variants
Technical data
Combined H+N+H slots
Dimension
Materials
Thickness
Length

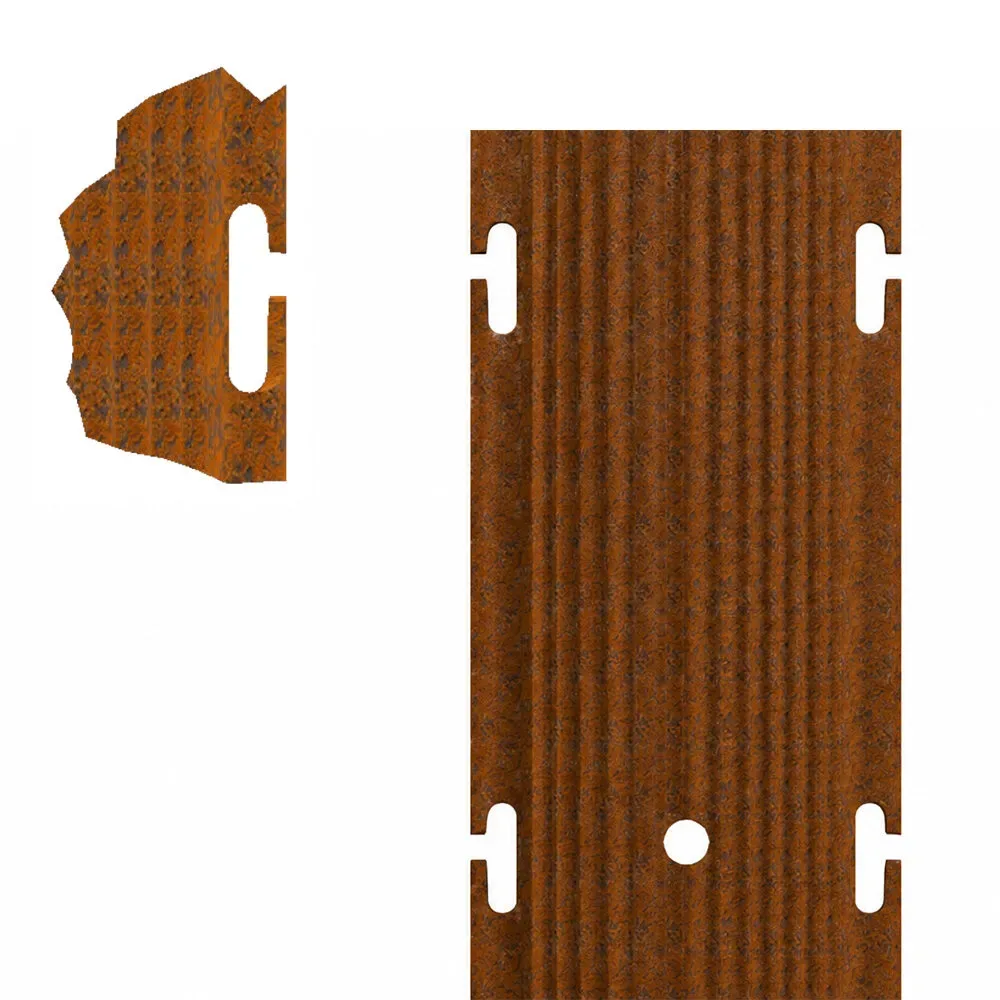

Combined H+N+H slots
Dimension
Materials
Thickness
Length
As simple as an external hook, as secure as an internal one. The slots don’t get crushed under mechanised operations, for maximum convenience and installation speed. The end support works with drip lines and movable wire pairs. End punching is positioned about 50 cm from the ground, in an “H”, usable for a resting wire or an irrigation pipe, adding to the post’s versatility across different trellis configurations.

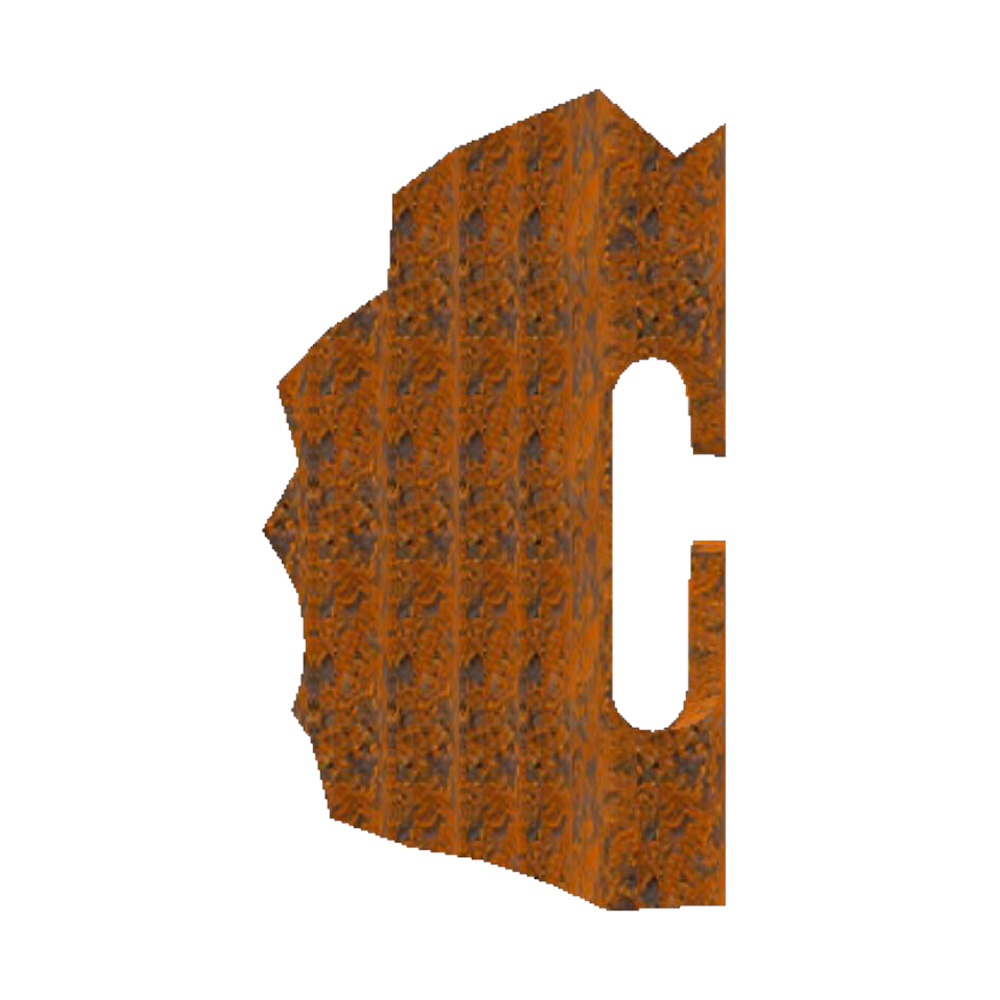

“H” slot
Makes it easy to lift out the movable wires.

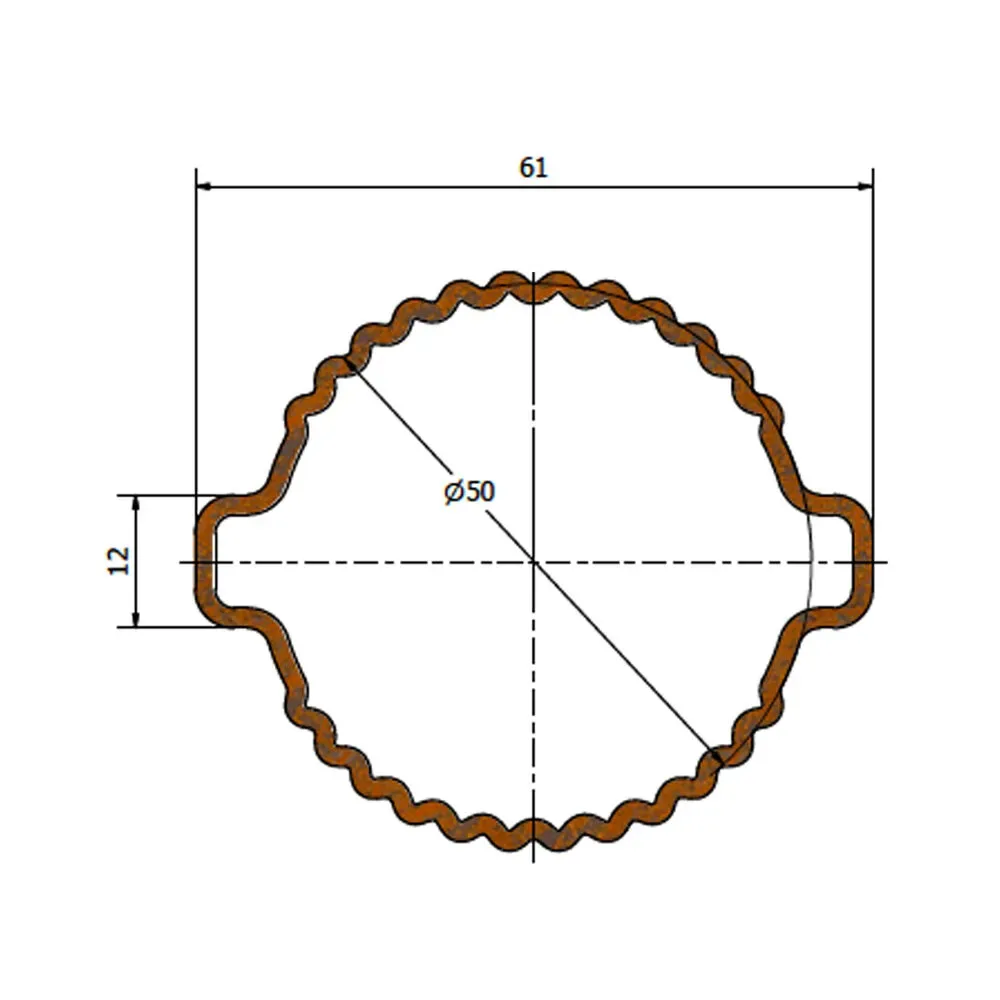

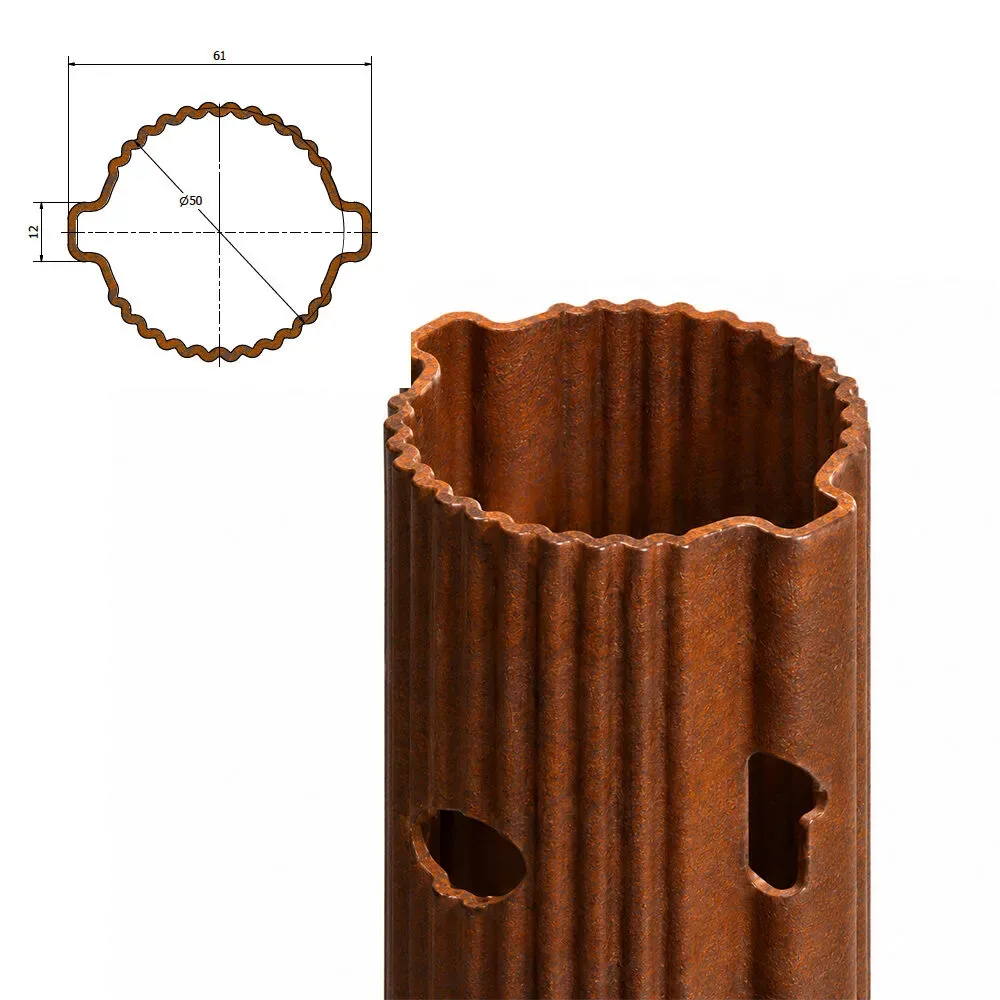

Tubular section 61 × 50 mm, closed and high-frequency welded (material fusion). The edge-free geometry delivers 55% greater stability.
Corten S355J2W *
Also available: hot-dip galvanised after processing
*EN 10204 certified
Corten 1.80 mm
Strip-galvanised 1.5 mm – 1.80 mm – 2 mm
Hot-dip galvanised 1.65 mm – 1.80 mm – 1.90 mm
2.00 mm available on request for orders over 5,000 posts
from 2000 mm
to 7000 mm
Key advantages
High resistance
This weathering steel vineyard post offers anti-corrosion properties and a natural passivation that protects it over time, making it ideal for demanding outdoor environments.
Integrated aesthetics
Corten’s natural rust colour blends perfectly with the surroundings, enhancing the vineyard’s visual appearance without compromising functionality.
Easy installation
The smart slot design and end punching allow quick, precise mounting, reducing installation time and cost.
Certified quality
Sika is ISO 9001 (quality) and ISO 14001 (environmental) certified, ensuring controlled production standards.
Get in touch to discover how Sika can support your vineyard with high-quality posts and tailored solutions.
Planning a new vineyard or upgrading your current system with modern solutions?
Our corten and galvanised steel vineyard posts deliver maximum strength and long-term durability—built to perform in every environment.
