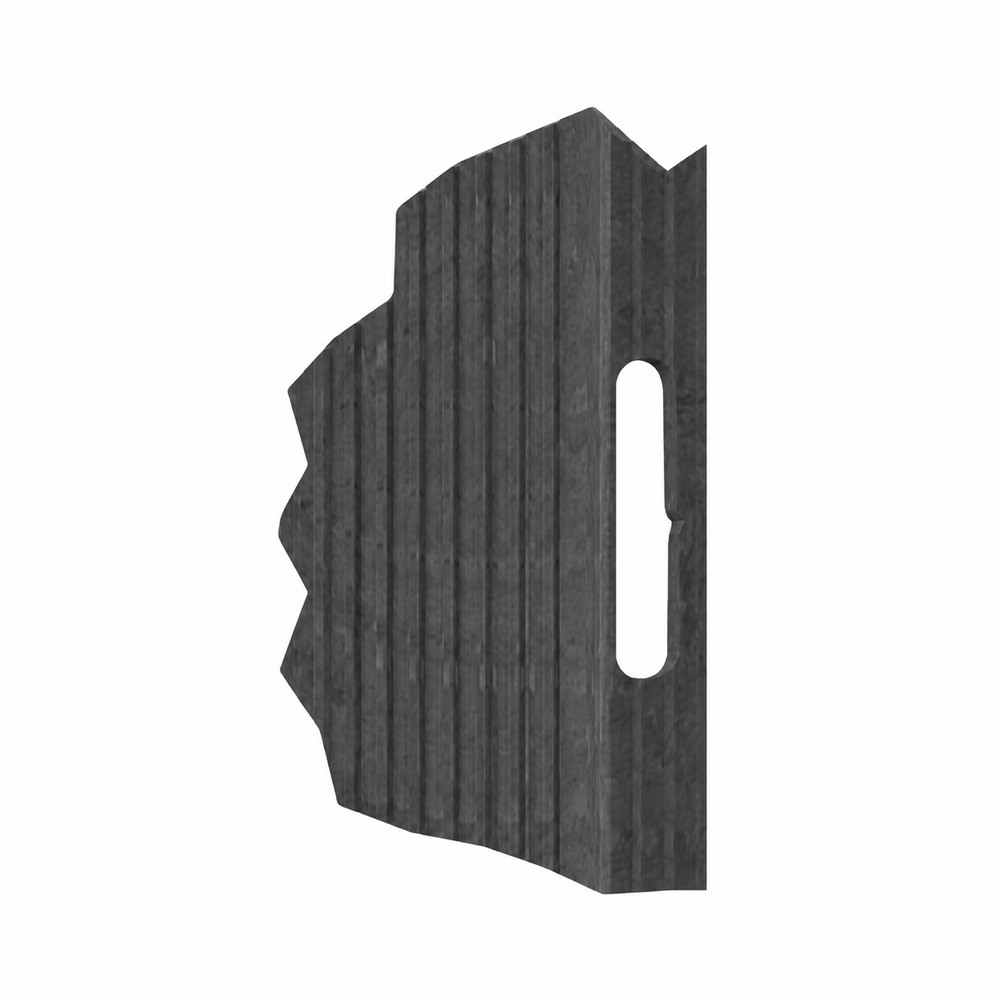

“N” Slot
Stops fixed wires from slipping out; also useful on sloping ground (up-and-down terrain).
https://www.vineyardtrellis.com/wp-content/uploads/2024/12/vineyard-big-corten.pdf
NEW
Galvanised tubular steel vineyard line post “Orbit”
Sika Orbit galvanised tubular vineyard post
The galvanised tubular vineyard post “Orbit” is the fully-protected version of the Sika Orbit line. Unlike a traditional C-profile, this round vineyard post has a closed 61 × 50 mm section that delivers superior torsional strength and +55% greater stability than standard posts.
This high-frequency welded vineyard post has a material-fusion weld that won’t crush under mechanised operations. Hot-dip galvanising coats the whole surface, making this tubular steel vineyard post the ideal choice for humid or saline environments where maximum corrosion protection is essential.
With no sharp edges and uniform perimeter ribbing, the Sika Orbit vineyard post is safe to handle and quick to install. The slots are roll-formed in the H+N+H layout, leaving the post ready to use with no further processing. Also available in Corten steel.
Variants
Technical data

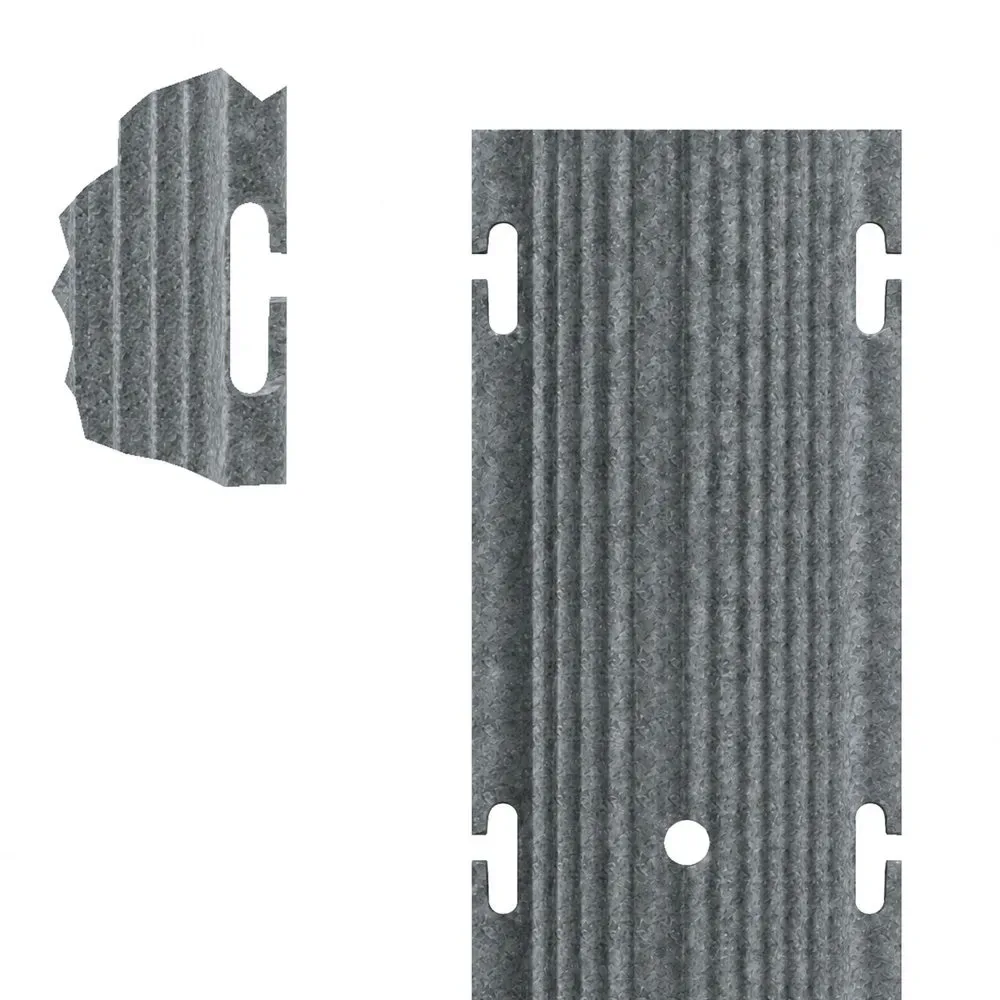

Combined H+N+H slots
Dimension
Materials
Thickness
Length
Combined H+N+H slots
Dimension
Materials
Thickness
Length

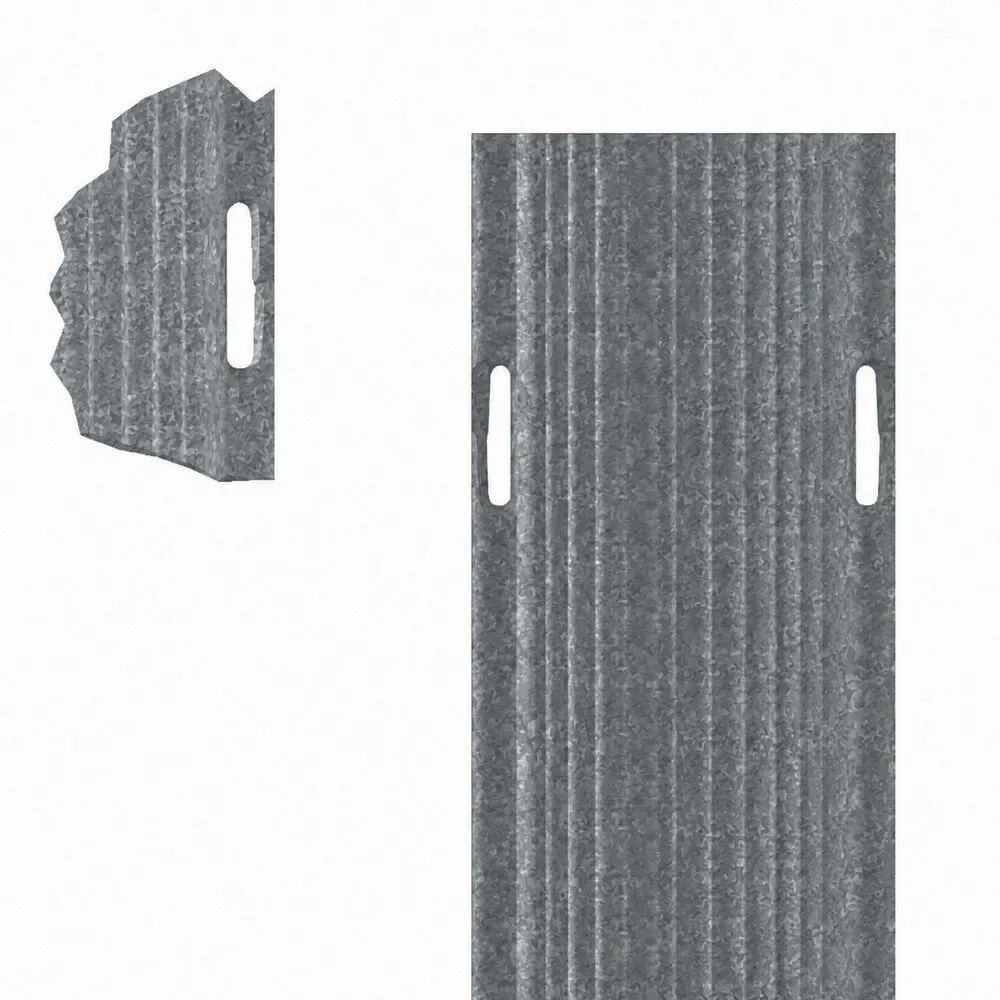

As simple as an external hook, as secure as an internal one. The slots don’t get crushed under mechanised operations, for maximum convenience and installation speed. The end support works with drip lines and movable wire pairs. End punching is positioned about 50 cm from the ground, in an “H”, usable for a resting wire or an irrigation pipe, adding to the post’s versatility across different trellis configurations.

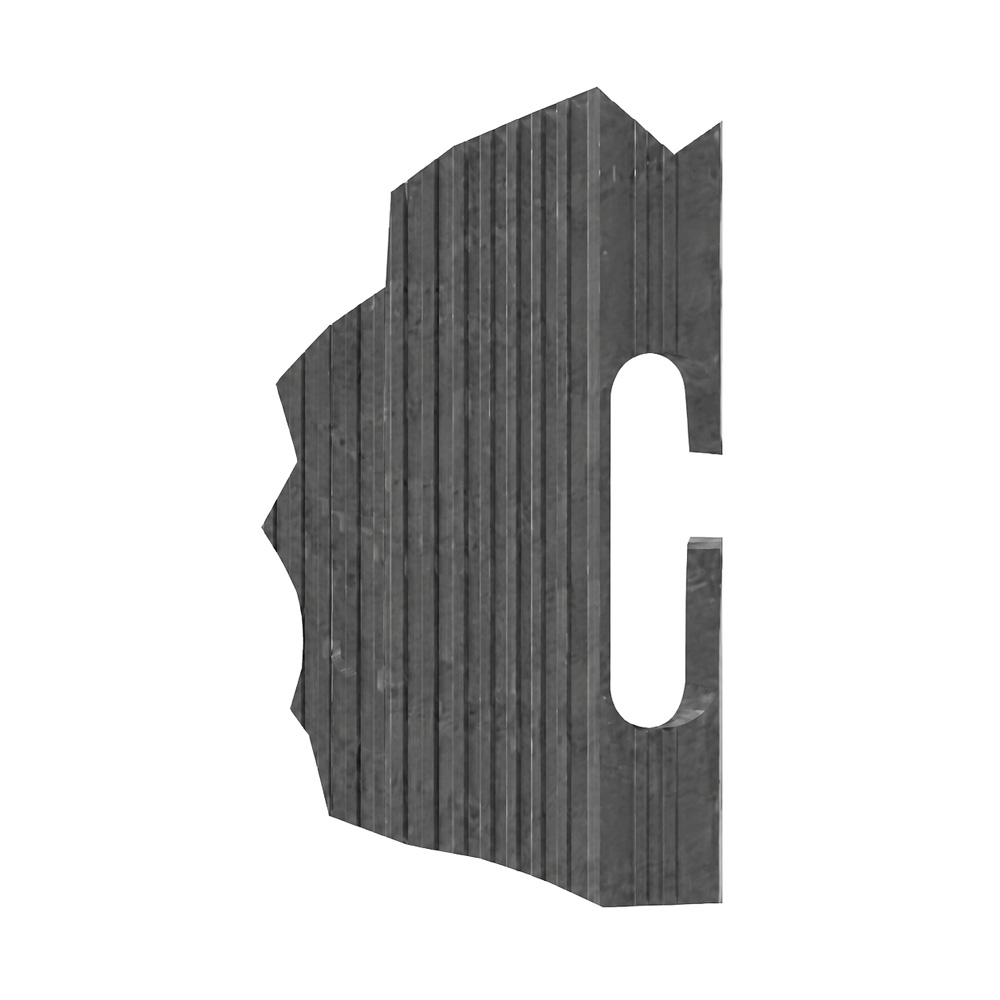

“H” slot
Makes it easy to lift out the movable wires.

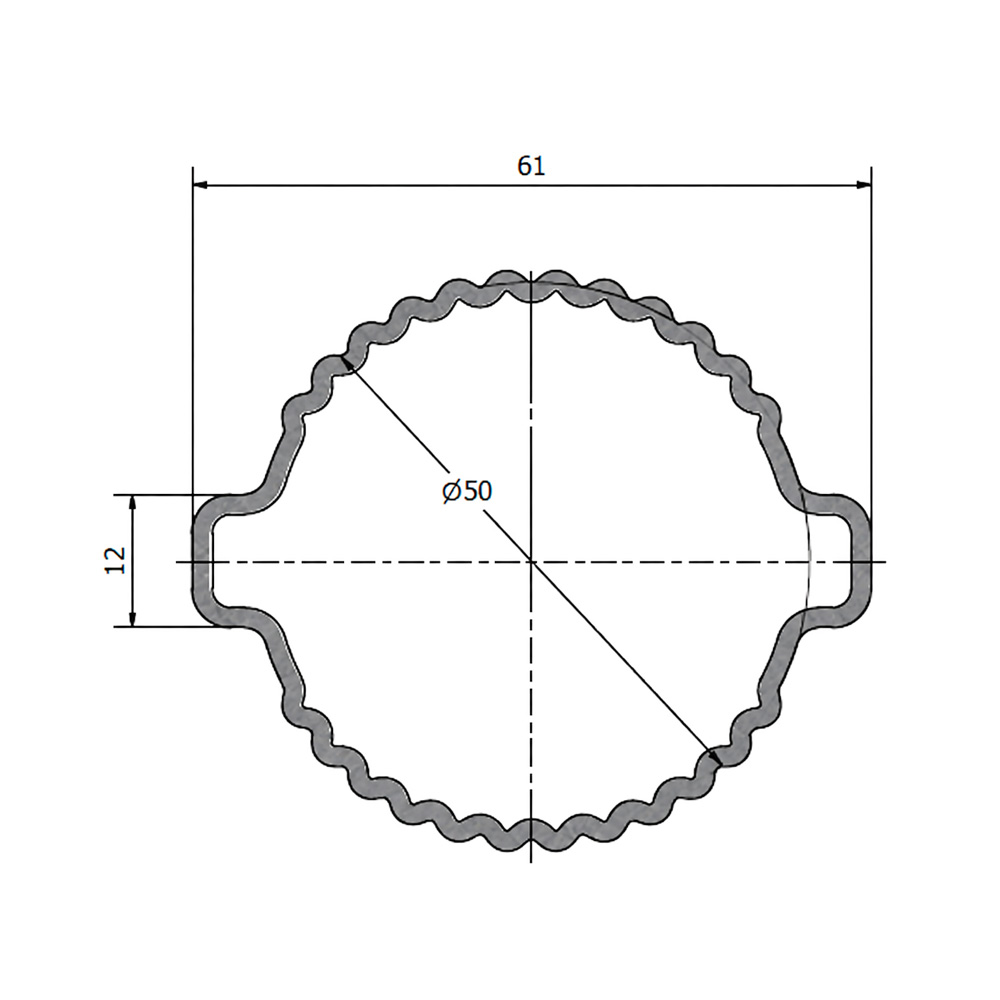

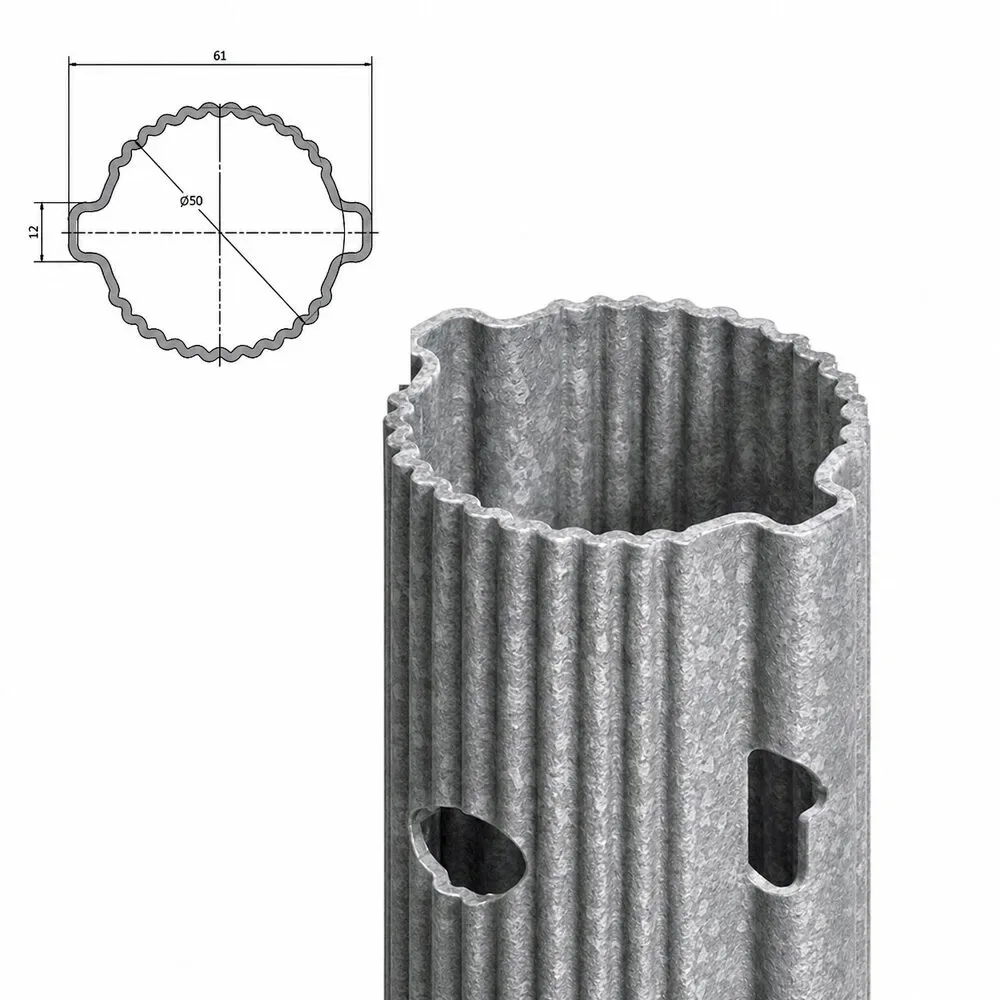

Tubular section 61 × 50 mm, closed and high-frequency welded (material fusion). The edge-free geometry delivers 55% greater stability.
Hot-dip galvanised after processing.

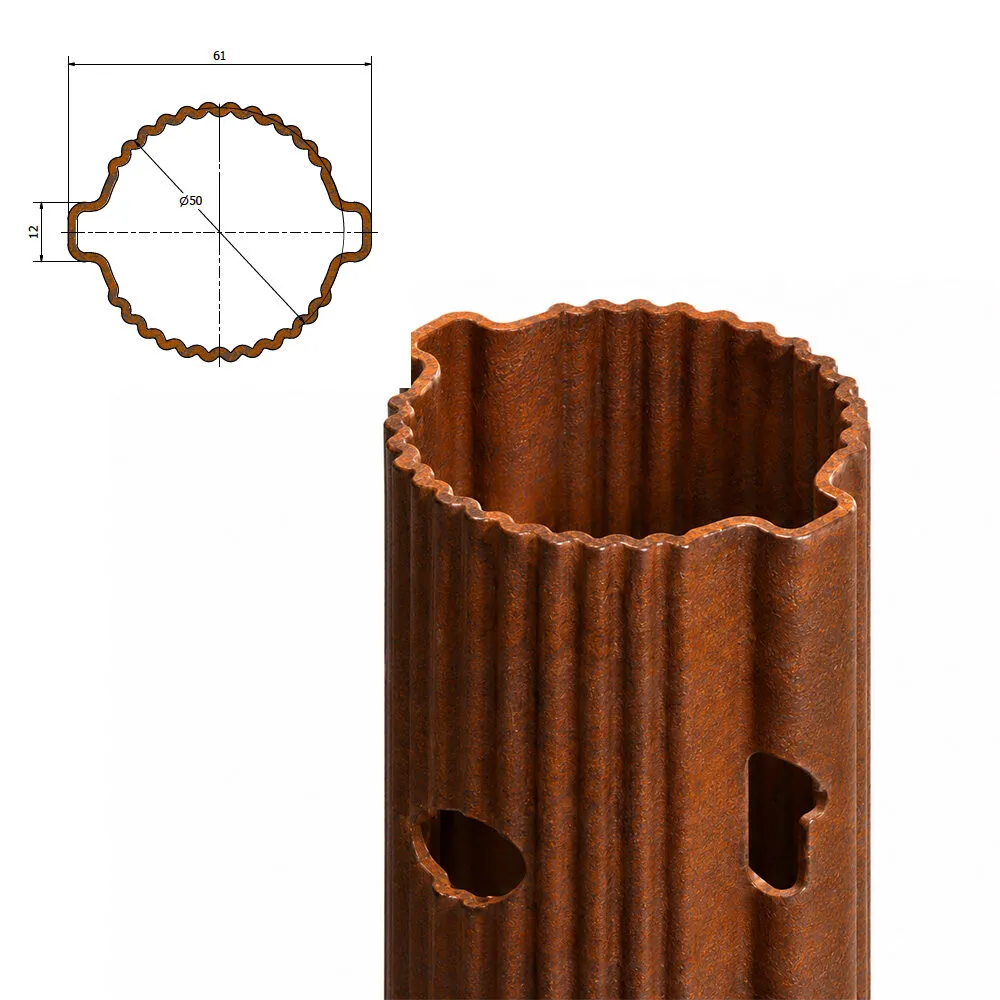

Also available: Corten S355J2W, EN 10204 certified.
Strip-galvanised 1.5 mm – 1.80 mm – 2.00 mm
Hot-dip galvanised 1.65 mm – 1.80 mm – 1.90 mm
Corten 1.80 mm
On request: 2.00 mm for orders over 5,000 posts
from 2000 mm
to 7000 mm
Key advantages
High resistance
Hot-dip galvanising coats the whole surface with a durable zinc layer, protecting the post over time and making it ideal for demanding outdoor environments.
Clean, uniform finish
The even galvanised surface keeps the vineyard looking tidy and consistent without compromising functionality.
Easy installation
The smart slot design and end punching allow quick, precise mounting, cutting installation time and cost.
Certified quality
Sika is ISO 9001 (quality) and ISO 14001 (environmental) certified, ensuring controlled production standards.
Get in touch to discover how Sika can support your vineyard with high-quality posts and tailored solutions.
Planning a new vineyard or upgrading your current system with modern solutions?
Our corten and galvanised steel vineyard posts deliver maximum strength and long-term durability—built to perform in every environment.
